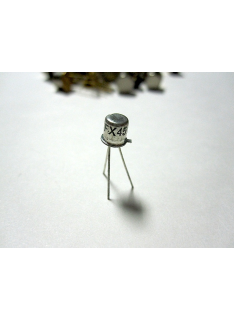

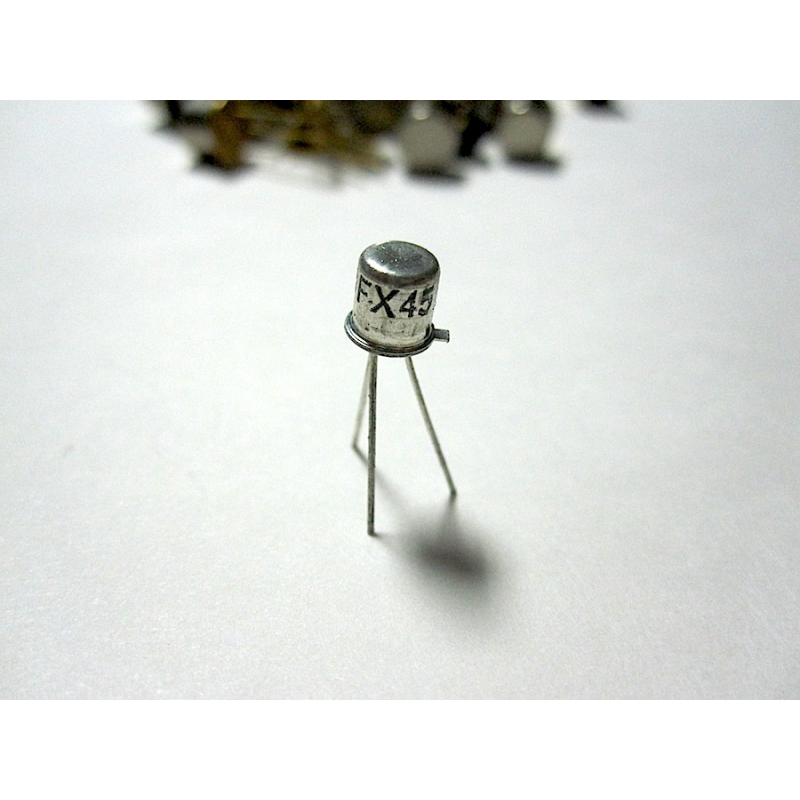

TRANSISTOR BFX45

TRANSISTOR BFX45 Polarity: NPN Maximum Collector Power Dissipation (Pc): 0.125 W Maximum Collector-Base Voltage |Vcb|: 30 V Maximum Collector-Emitter Voltage |Vce|: 20 V Maximum Emitter-Base Voltage |Veb|: 5 V Maximum Collector Current |Ic max|: 0.1 A Max. Operating Junction Temperature (Tj): 150 °C Transition Frequency (ft): 175 MHz Forward Current Transfer Ratio (hFE), MIN: 100 Noise Figure, dB: -
