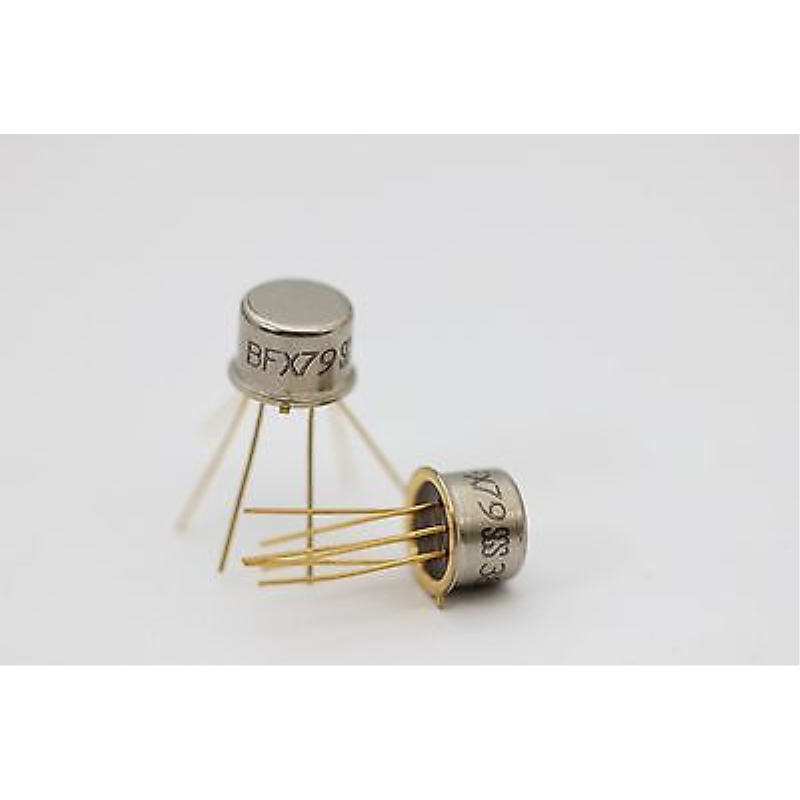

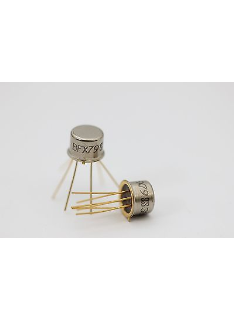

TRANSISTOR BFX79

TRANSISTOR BFX79 Polarity: n*p Maximum Collector Power Dissipation (Pc): 1.8 W Maximum Collector-Base Voltage |Vcb|: 80 V Maximum Collector-Emitter Voltage |Vce|: 60 V Maximum Emitter-Base Voltage |Veb|: 5 V Maximum Collector Current |Ic max|: 0.6 A Max. Operating Junction Temperature (Tj): 200 °C Transition Frequency (ft): 50 MHz Collector Capacitance (Cc): 12 pF Forward Current Transfer Ratio (hFE), MIN: 40 Noise Figure, dB: -
