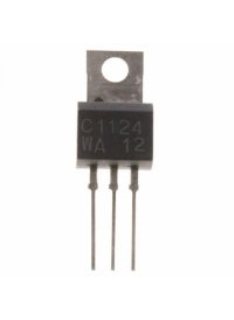

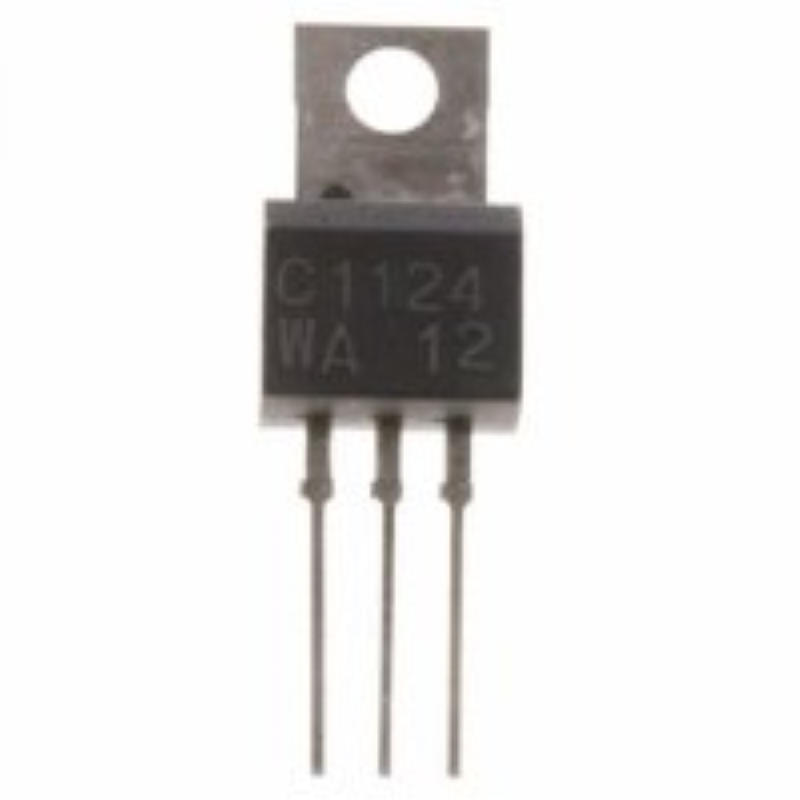

TRANSISTOR 2SC1124

TRANSISTOR 2SC1124 Polarity: NPN Maximum Collector Power Dissipation (Pc): 5 W Maximum Collector-Base Voltage |Vcb|: 160 V Maximum Collector-Emitter Voltage |Vce|: 140 V Maximum Emitter-Base Voltage |Veb|: 5 V Maximum Collector Current |Ic max|: 1 A Max. Operating Junction Temperature (Tj): 200 °C Transition Frequency (ft): 140 MHz Forward Current Transfer Ratio (hFE), MIN: 50 Noise Figure, dB: - Package: TO202
